Feature and accent walls
Run vertical to lift a low ceiling, horizontal to stretch a room. The shadow line does the work — even a painted white V-joint wall keeps depth and texture that flat drywall cannot get near.
V-Joint
The same locking tongue and groove joint with a chamfer milled on each edge, giving a crisp V-shaped shadow line at every seam.

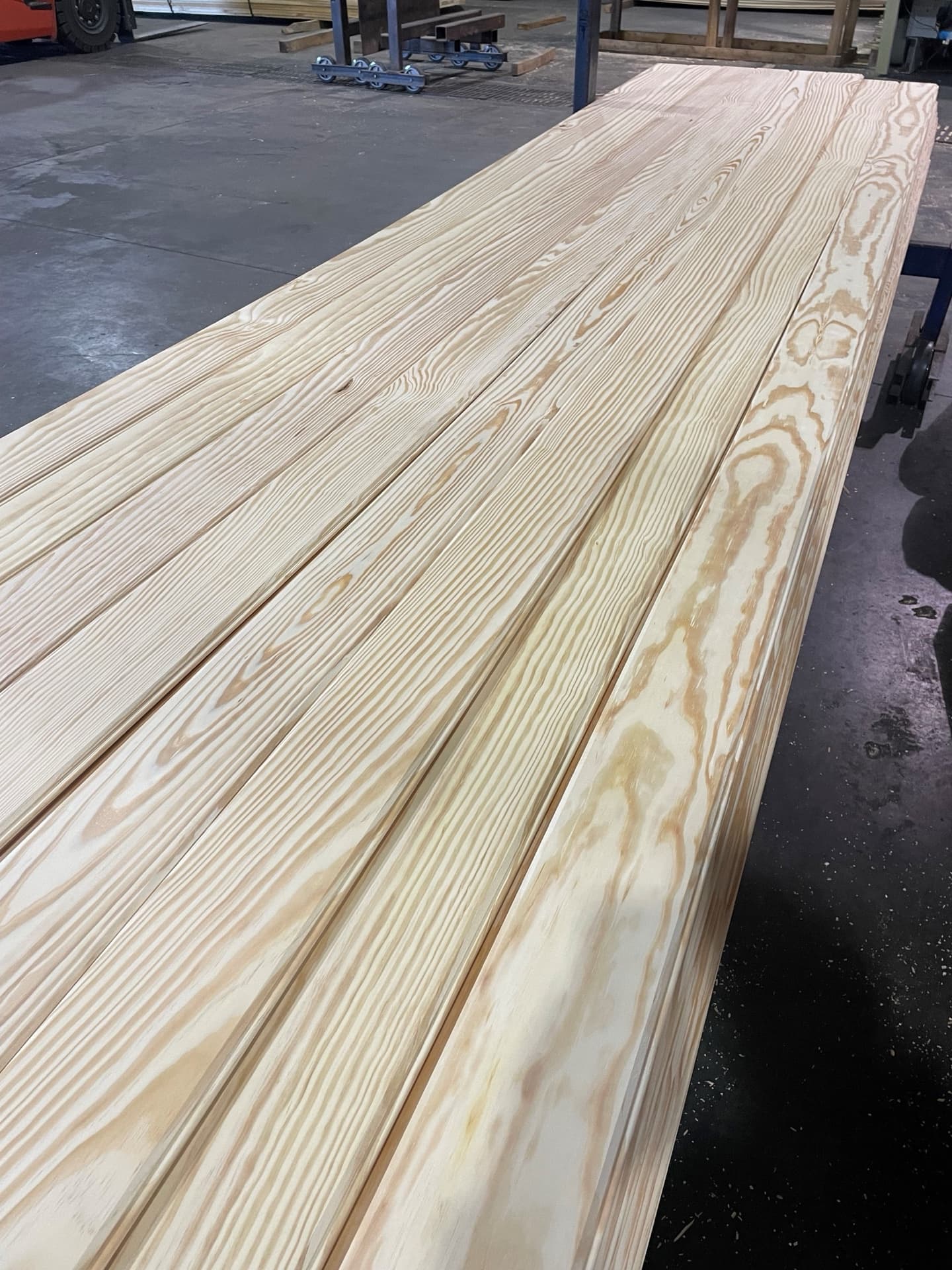

A shadow line, milled in
V-joint starts as tongue and groove. The difference is a small chamfer run along the face edge of both sides, so when two boards meet the two chamfers form a shallow V. That V catches light and throws a fine, even shadow down every seam.
It matters more than it sounds. Flat T&G reads as one continuous plane; V-joint reads as a deliberate series of boards. On a long wall or a tall vault, the repeating line gives the surface rhythm and hides the tiny variations in board width that are invisible up close and obvious across thirty feet.
The chamfer also gives you forgiveness. A joint that is a hair proud or a hair shy disappears into the V instead of showing as a lipped seam, which makes V-joint the easier of the two to hang well on framing that is not perfectly flat.

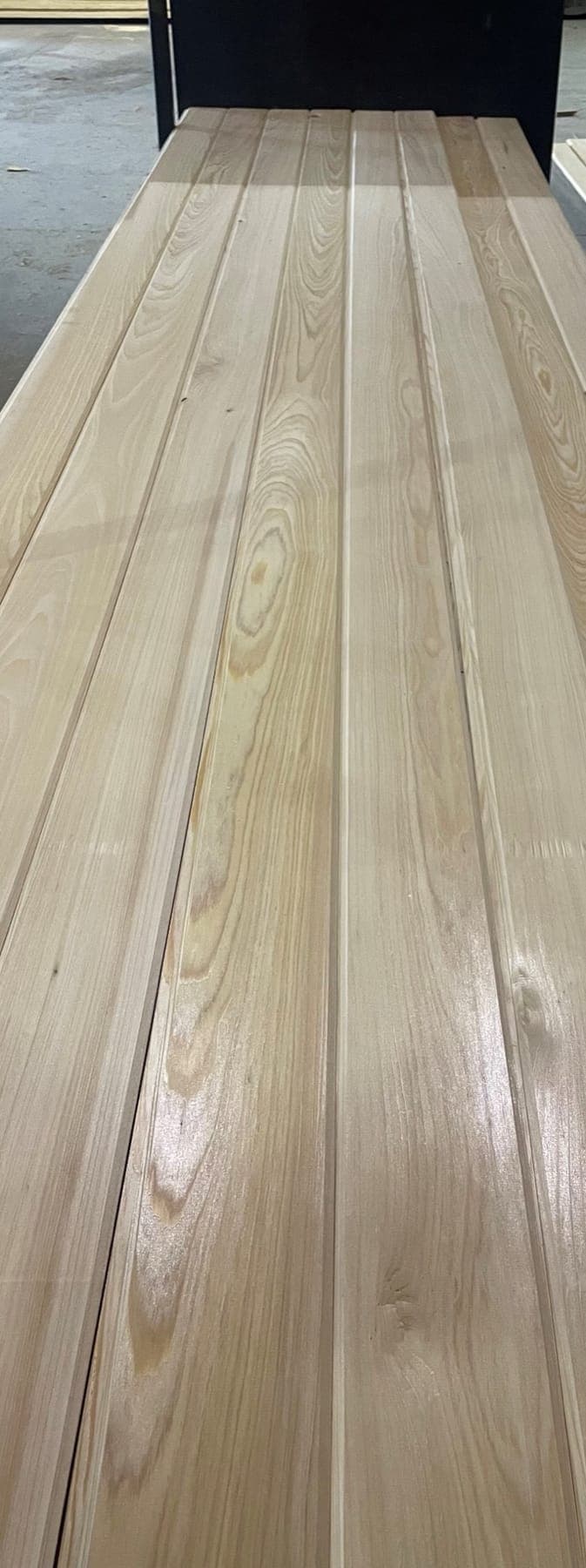

Single V and double V
Standard V-joint puts one chamfer per edge — one shadow line per joint. A double V-joint adds a center bead or a second chamfer down the middle of the face, so a 1x8 reads visually as two narrower boards. It is a way to get a fine-line look without doubling your board count and your install time.
We can run custom chamfer depths and profile matches. If you are patching into existing paneling, bring us a sample piece and we will match the cut.
Sizes & coverage
Dimensions and board count
Use the coverage width to plan your board count, then add 10 to 15 percent for cuts and waste. Nominal sizes follow standard lumber convention — dressed dimensions run slightly smaller.
| Profile | Nominal size | Approx. coverage | Best for |
|---|---|---|---|
| 1x6 V-Joint | 3/4 in x 5-1/2 in | ~5 in face | Feature walls, cabins, finer line spacing |
| 1x8 V-Joint | 3/4 in x 7-1/4 in | ~6-3/4 in face | Ceilings and big rooms with a wider board look |
| Double V-Joint | Center detail on the face | Reads as two boards | Fine-line look without the extra install time |
| Custom profiles | Cut to spec | By order | Profile matching on restoration and add-on work |
Standard lengths are 12 and 16 ft in stock, with 4, 8, and 10 ft available on request. Call (352) 895-9950 with your square footage and we will run the count with you.
Where it goes
Common applications
Cabin and lake house interiors
The classic knotty pine cabin interior is V-joint. #2 grade with a clear or amber finish gives you the warm, lived-in look people are actually after when they say cabin.

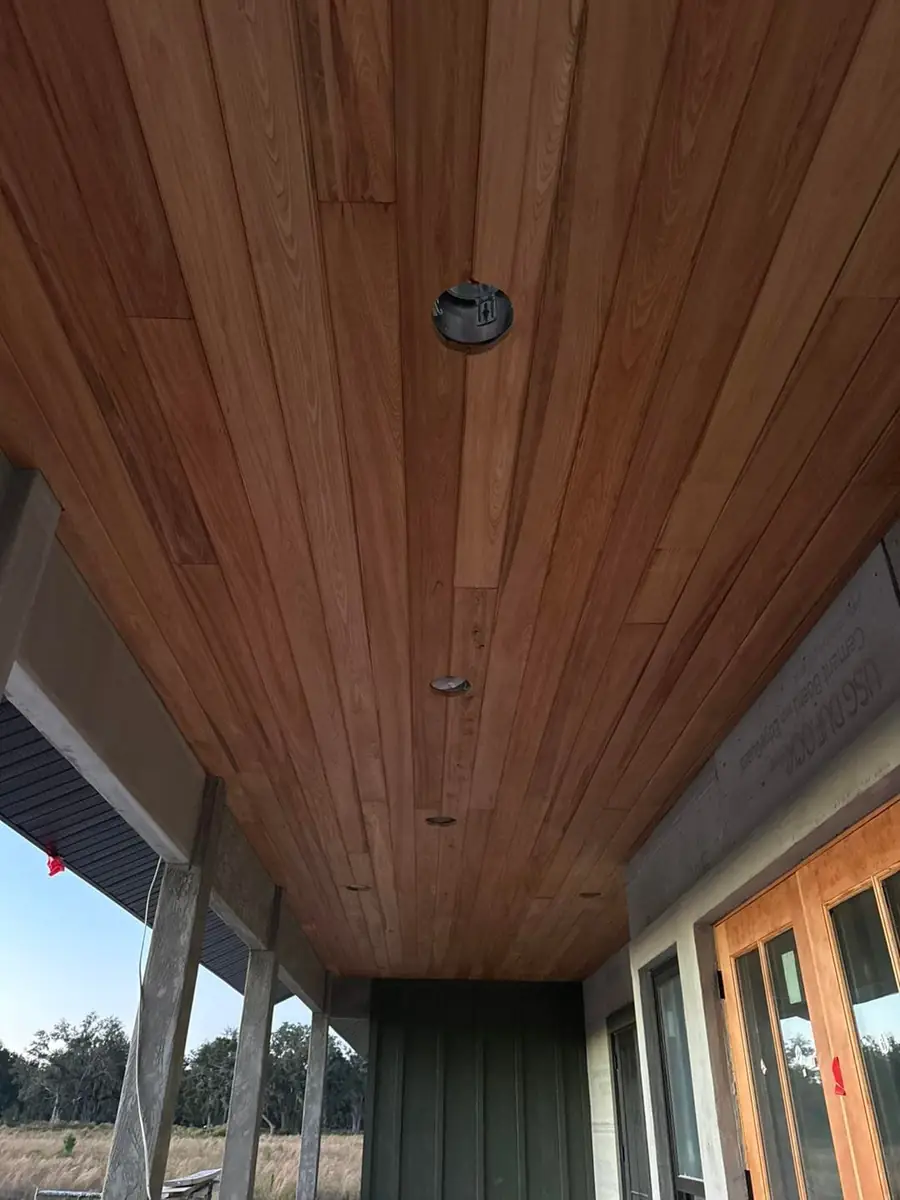

Soffits and porch ceilings
Under an eave, the chamfer keeps a long run from looking like a flat slab. Sealed pine handles a covered soffit fine; cypress is the pick anywhere the boards catch blowing rain.
Species
What we mill it in
Southern Yellow PineStandard stock. Holds the chamfer crisply without fuzzing, which is exactly what you want on a profile whose whole point is a clean line.
- Cypress
Special order. Same profile, better weather resistance, and a softer color that stays light as it ages under a clear finish.
- Poplar & other hardwoods
Special order. Poplar is the paint-grade choice when you want the shadow line and none of the grain showing through.
Grades
Which grade to order

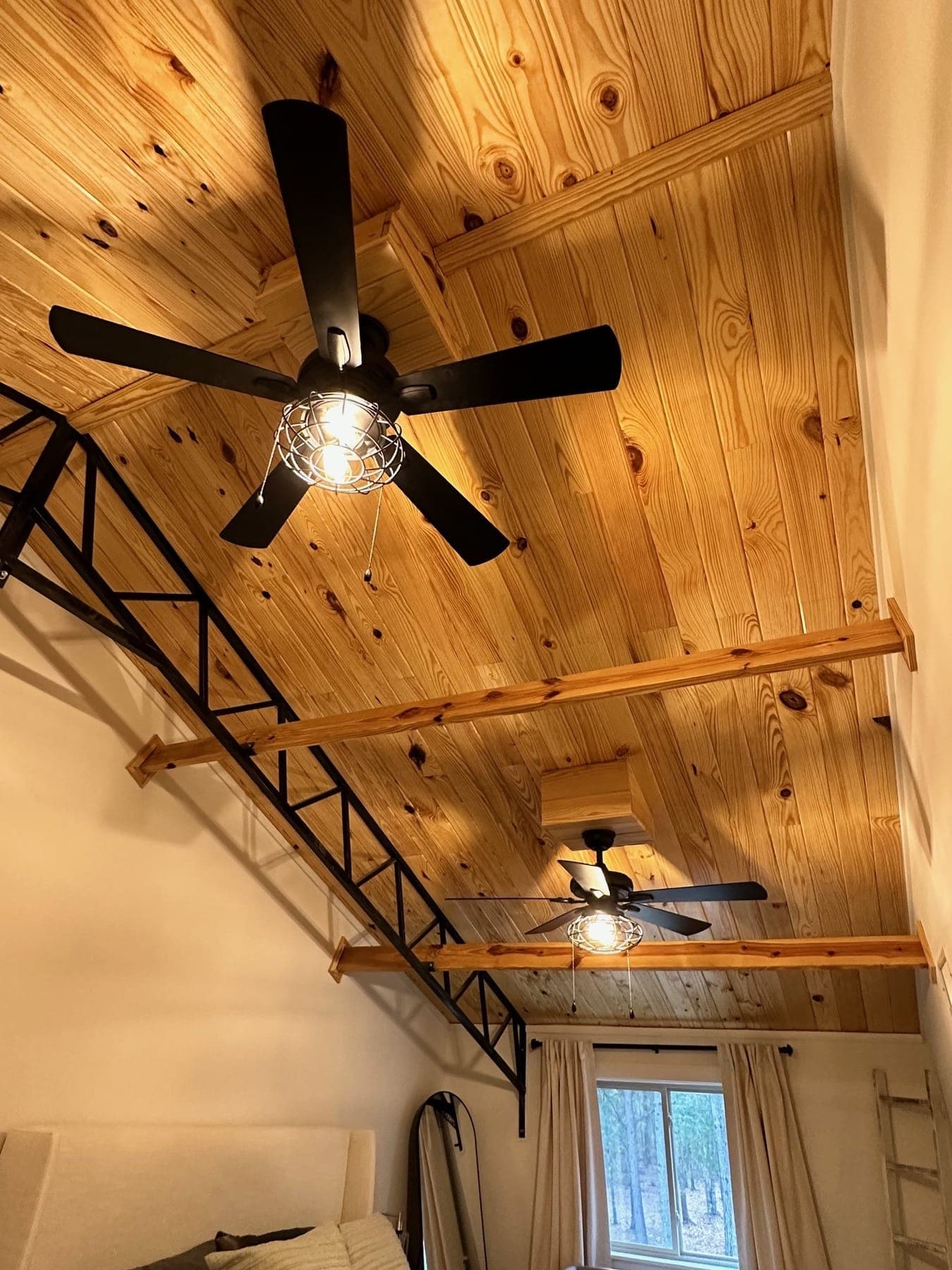

- Number 2 Grade
Knotty character. The right pick for cabin walls, bunk rooms, and anywhere the knots are part of the look.
- Clear Grade
Few to no knots, so the shadow lines are the only thing your eye follows. Best for modern and architectural interiors.
Other profiles we mill
Tongue & Groove
A milled tongue on one edge and a matching groove on the other, so boards lock together and hide every fastener.
View Tongue & Groove
Shiplap Siding
An L-shaped rabbet cut into each long edge so boards lap over one another and sit flat, leaving an even reveal at every joint.
View Shiplap SidingReady to price your v-joint?
Tell us the room, the square footage, and the finish you are after. We will walk you through species, grade, and length.
Locally yours — Ocala, FL.
